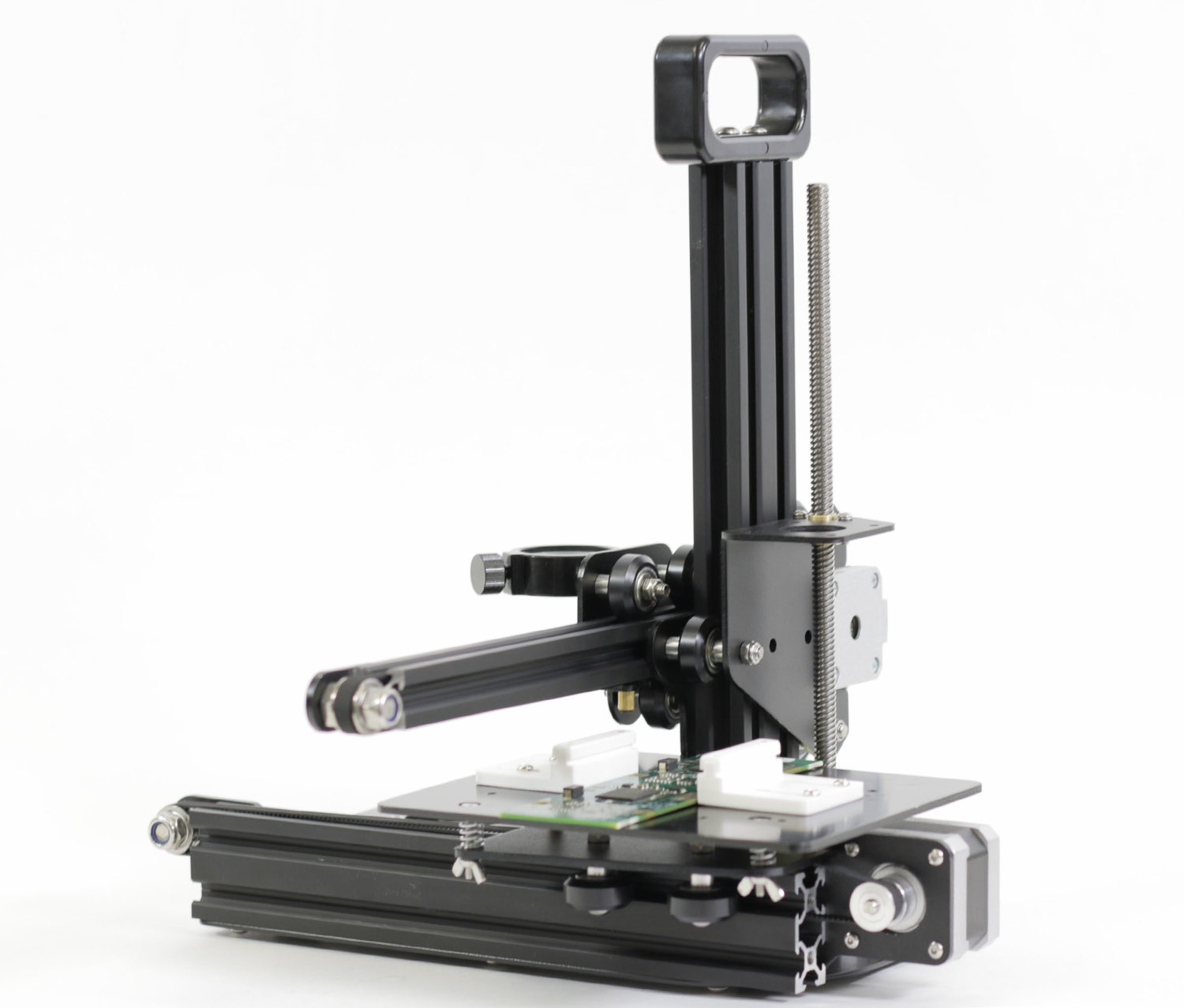

Vision M1 bracket automated inspection

The new compact and portable Vision M1 machine vision system is specially designed for Dino-Lite microscopes, is easy to install, and provides control or automated inspection through available software.

Use the software to view and adjust the X-axis, Y-axis and Z-axis.

The advanced software version allows you to set the required path and create automatic image capture recipes.

Additional controls allow pause, pause time, shooting speed, automatic image capture, LED switch, selectable resolution, automatic exposure, repeat, to continuously check multiple subjects.

Requires M1-S (model: MRVM1S) to be used with the software.

•Vision M1 controllable XYZ stage

•Vision M1 advanced software

o All-in-one software with real-time view window

o "Recipe" creation, allowing repeated paths and image capture options

• Vision Shuttle Software

Model: MRVM1ADV

M1-S

•Vision M1 controllable XYZ stage

• Vision Shuttle Software

Model: MRVM1S

• Model: Vision M1

• Available software: Basic, Advanced

• Size: 8.5 inches long × 10 inches wide × 13 inches high

• Weight: 8.5 lbs / 3.8 kg

Compatibility: Dino-Lite USB model UVC (4 bits)

Requires Windows PC with 2 available USB 2.0 ports
