Dino-Lite新产品:AM5216TF

作者:启示发展有限公司 浏览: 发表时间:2017-07-24 09:27:25

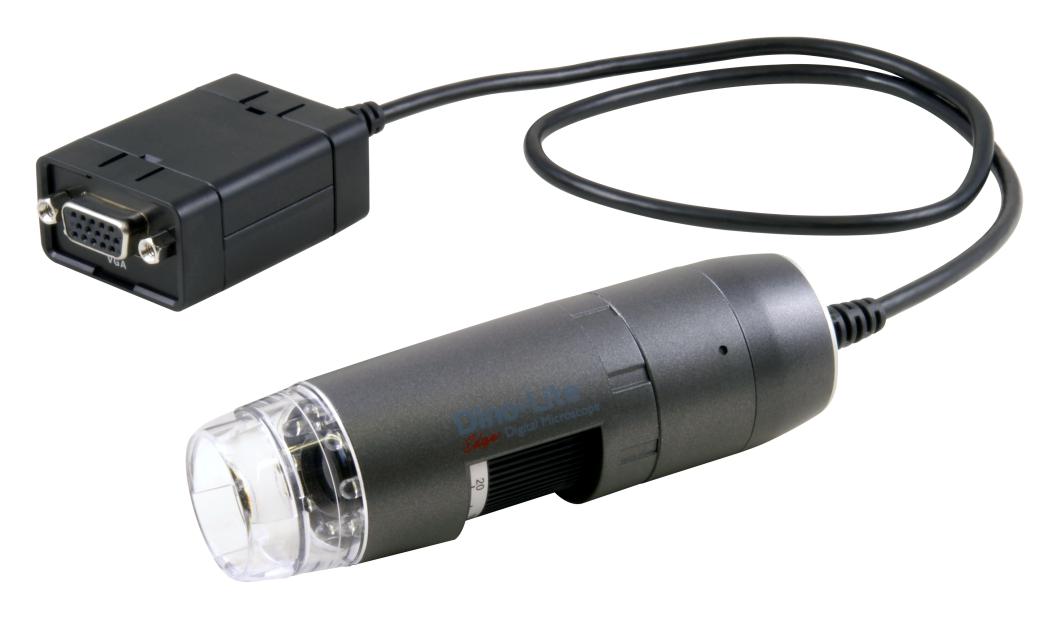

AM5216TF





 Summary



Designed to provide extra-long working distance, the Dino-Lite Edge D-sub series AM5216TF offers minimum 115mm viewing distance at maximum 70X magnification. Through direct connection to VGA monitors, the AM5216TF can be well-suited for inspection, quality control, failure analysis, etc.



Overview



Extra-long working distance

With Edge optics quality, the ELWD lens reveals minute details with minimum 115mm working distance at maximum magnification of 70X, making it well-suited for observation requiring ample space between microscope and object.



High optical resolution

The superior optics adopted in the Edge series reveals the finest details, answering the needs of the most demanding microscopy applications.



D-sub interface

The D-sub interface allows Dino-Lite to deliver real-time images to a VGA monitor without the presence of a computer.



Microtouch button

This touch-sensitive button allows to freeze/unfreeze image or to control the LED on/off with a long-tap.





Gallery





Specification



Model

AM5216TF Dino-Lite Edge



Interface

D-sub



Product Resolution

720p resolution



Magnification

10X~70X



Frame Rate

60fps



Sensor

Color CMOS



MicroTouch

Yes



Unit Weight

105 (g)



Unit Dimension

10.5cm (H) x 3.2cm (D)







Information about working distance and field of view



M WD   FOV (x)      FOV (y)         DOF

10      480          39.0            31.2            10.60

20      263          19.5            15.6              4.85

30      186          13.0            10.4              1.85

40      152            9.8              7.8               1.24

50      132            7.8              6.2               0.93

60      121            6.5              5.2               0.73

70      115            5.6              4.5               0.53



M = magnification rate WD = working distance without front cap

FOV = field of view DOF= depth of field Unit = mm
